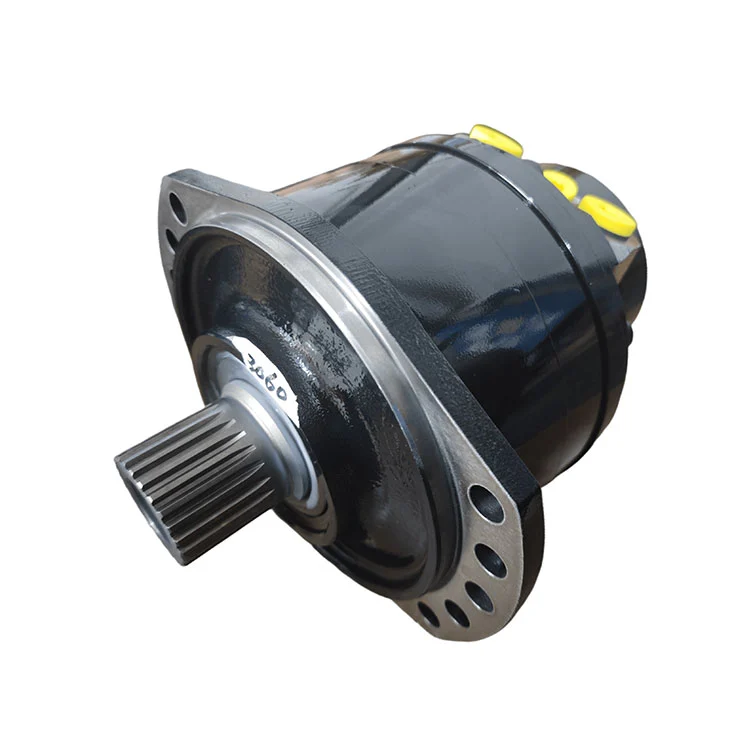

If you’ve ever found yourself overwhelmed by hydraulic motor specifications, wondering which model will truly meet your equipment’s demands for torque, speed, and durability, you’re not alone. Selecting the correct motor is a critical decision that impacts performance, efficiency, and total cost of ownership. Two of the most pivotal parameters in this selection are displacement and operating pressure. At Helm Tower, we’ve designed our HMS Series Hydraulic Motor to offer clarity and reliability precisely where it matters most. Let me guide you through how our product parameters translate into real-world performance for your application.
What is Displacement and Why Does It Matter for Your HMS Series Motor?
Displacement, measured in cubic centimeters per revolution (cc/rev), is essentially the motor’s size. It determines how much hydraulic oil is needed to turn the motor’s output shaft one full revolution. Think of it as the engine capacity in a car. A higher displacement HMS Series Hydraulic Motor will deliver higher torque at a given pressure but will run at a lower maximum speed. The key question is, what does your application prioritize – raw power or operational speed? Our motors are engineered to provide a balance, but choosing the right starting point is crucial. Here’s a quick breakdown of our core displacement range and its primary applications:
Small Displacement (e.g., HMS-050 to HMS-160): Ideal for applications requiring higher speeds and moderate torque, such as conveyor drives, fan drives, or winches.
Medium Displacement (e.g., HMS-200 to HMS-315): The workhorse range for many industrial and mobile applications, offering an excellent balance for augers, mixers, and travel drives.
Large Displacement (e.g., HMS-400 to HMS-800): Built for high-torque, low-speed demands, perfect for heavy-duty applications like drum drives, crushers, and heavy winches.
How Does Operating Pressure Define the Capability of a Hydraulic Motor?
While displacement defines torque potential, operating pressure is the force that activates it. System pressure, measured in bar or psi, acts on the motor’s displacement to generate torque. A common pain point is selecting a motor rated for a pressure lower than your system’s peak, leading to premature failure. Every HMS Series Hydraulic Motor from Helm Tower is built with a robust design to handle continuous and intermittent pressure loads reliably. You must match the motor’s pressure rating to your system’s maximum working and peak pressure. Don’t just consider the average; plan for the spikes.
Can You Cross-Reference Displacement and Pressure for Optimal Performance?
Absolutely. The true selection magic happens at the intersection of these two parameters. Torque output is a direct mathematical function of displacement and pressure. By consulting our performance charts, you can pinpoint the exact model that delivers your required torque within a safe operating window. For instance, let’s compare two popular models from the HMS Series Hydraulic Motor lineup:
| Model | Displacement (cc/rev) | Continuous Pressure Rating (bar) | Approx. Theoretical Torque at 250 bar (Nm) | Typical Application Fit |
|---|---|---|---|---|
| HMS-250 | 250 | 300 | 955 | Medium-duty wheel drives, industrial mixer |
| HMS-500 | 500 | 280 | 1910 | Heavy-duty rotary drive, large winch, crusher head |
This table illustrates a core principle: the HMS-500, with its larger displacement, generates significantly more torque at the same pressure, making it suited for heavier tasks. Helm Tower provides these detailed specifications to empower your decision-making.
Where Does Build Quality and Support Fit Into Your Final Decision?
Specifications on paper are one thing; consistent performance in harsh conditions is another. Beyond displacement and pressure, consider the motor’s construction, sealing technology, and bearing life. This is where the Helm Tower commitment to quality shines. We design each HMS Series Hydraulic Motor for longevity and ease of service, reducing your total lifecycle costs. Our engineering team is also a resource. If your application has unique demands—unusual load cycles, extreme temperatures, or space constraints—we can help you navigate our range to find the perfect fit.
Ready to Specify the Perfect Motor for Your Machine?
Navigating displacement, pressure, and application requirements doesn’t have to be a solo engineering challenge. The right HMS Series Hydraulic Motor can transform your equipment’s efficiency and reliability. At Helm Tower, we combine precise engineering with practical support to ensure you get a solution, not just a component.
Let’s turn your application parameters into an optimal motor selection. Contact us today with your specific torque, speed, and pressure requirements. Our experts are ready to provide detailed recommendations and technical data sheets to help you move forward with confidence. Visit our website or send your inquiry directly to our engineering team—we look forward to supporting your project.
-
